Miller Loader

Non Current Models

P12 Loader

       Pipe Threaded cylinder ports and painted piping were used from 1999 thru 2003.



JIC Threaded cylinder ports and Pace piping were used from 2003 to current.



Select your Model from the list below to review the drawing for that cylinder.

P-3 Loader



       3” Bore Lift Cylinders

*A few of these loaders were equipped with 3-1/4” bore cylinders either by customer request or due to tractor poor hydraulics



       3 1/4” Bore Lift Cylinders

PL-2X Loader

       Pipe Threaded cylinder ports and painted piping were used from 2001 thru 2003.



       JIC Threaded cylinder ports and Pace piping were used from 2003 to 2004.



Notes:

Loader

Description

Port Thread Style

Cylinder Part No. (Left)

Cylinder Part No. (Right)

Packing Kit

P1

Bucket Cylinder, 3.0 Bore x 1.75

3/8” Pipe

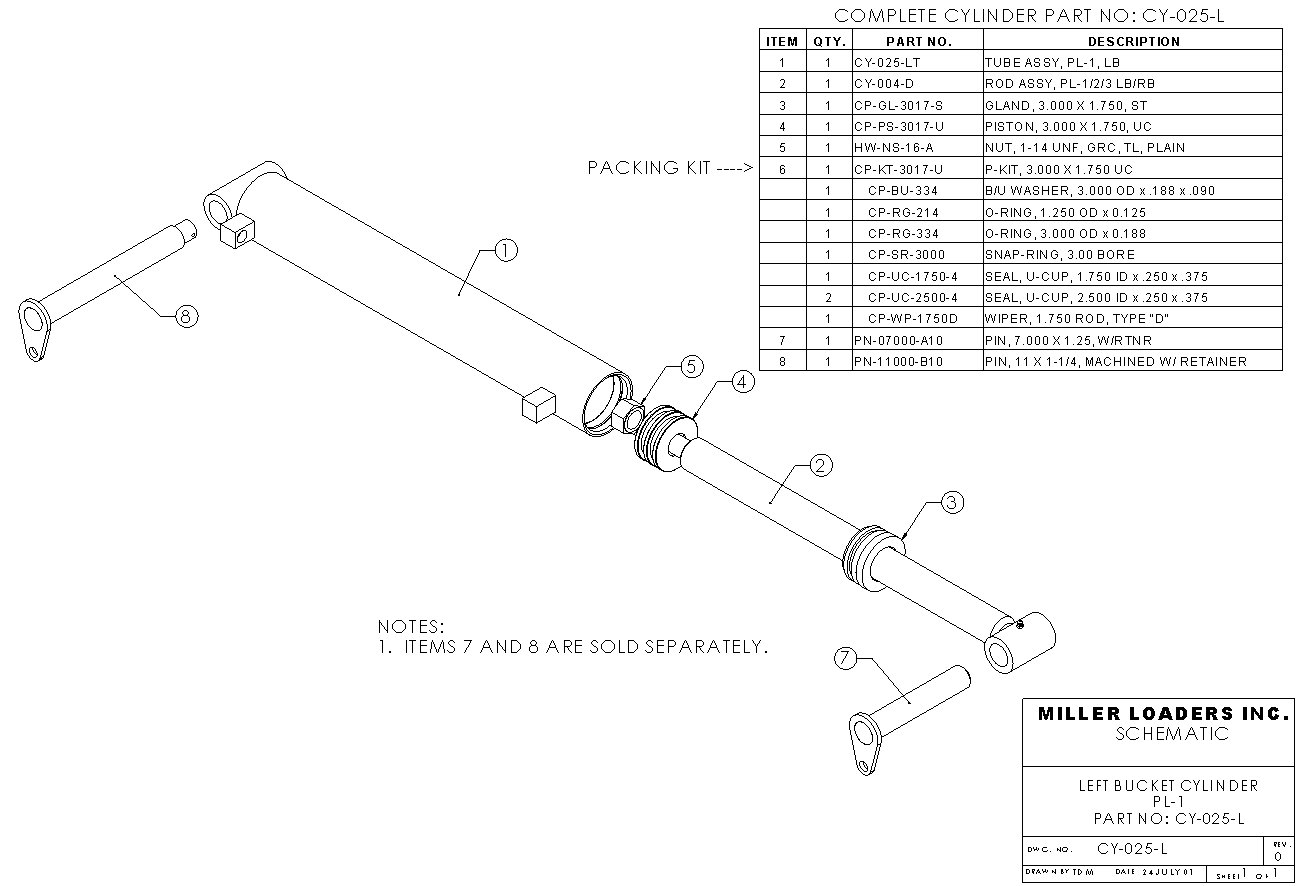

CY-025-L

CY-025-R

CP-KT-3017-U

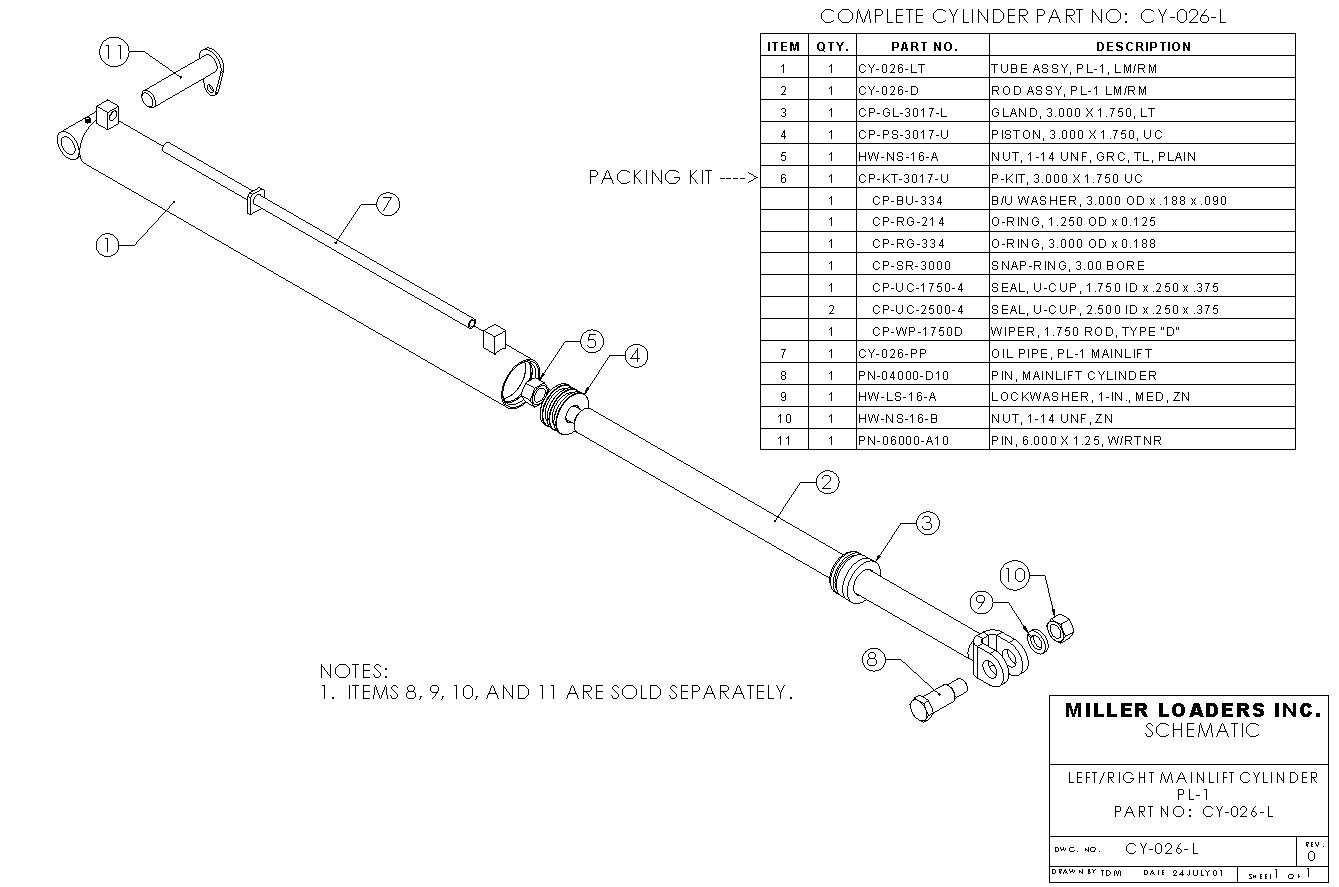

Lift Cylinder, 3.00 Bore x 1.75

3/8” Pipe

CY-026-L

CY-026-L

CP-KT-3017-U

P12

Bucket Cylinder, 2.50 Bore x 1.625

3/8” Pipe

CY-001-L

CY-001-R

CP-KT-2516-U



Lift Cylinder, 3.00 Bore x 1.75

3/8” Pipe

CY-002-L

CY-002-R

CP-KT-3017-U



Lift Cylinder, 2.50 Bore x 1.625

3/8” Pipe

CY-003-L

CY-003-R

CP-KT-2516-U

PL-2JR

Bucket Cylinder, 2.50 Bore x 1.625

3/8” Pipe

CY-010-L

CY-010-R

CP-KT-2516-U



Lift Cylinder, 3.00 Bore x 1.75

(Straight Butt End Ports– Older)

3/8” Pipe

CY-011-L

CY-011-R

CP-KT-3017-U



Lift Cylinder, 2.50 Bore x 1.625 (Straight Butt End Ports– Older)

3/8” Pipe

CY-012-L_

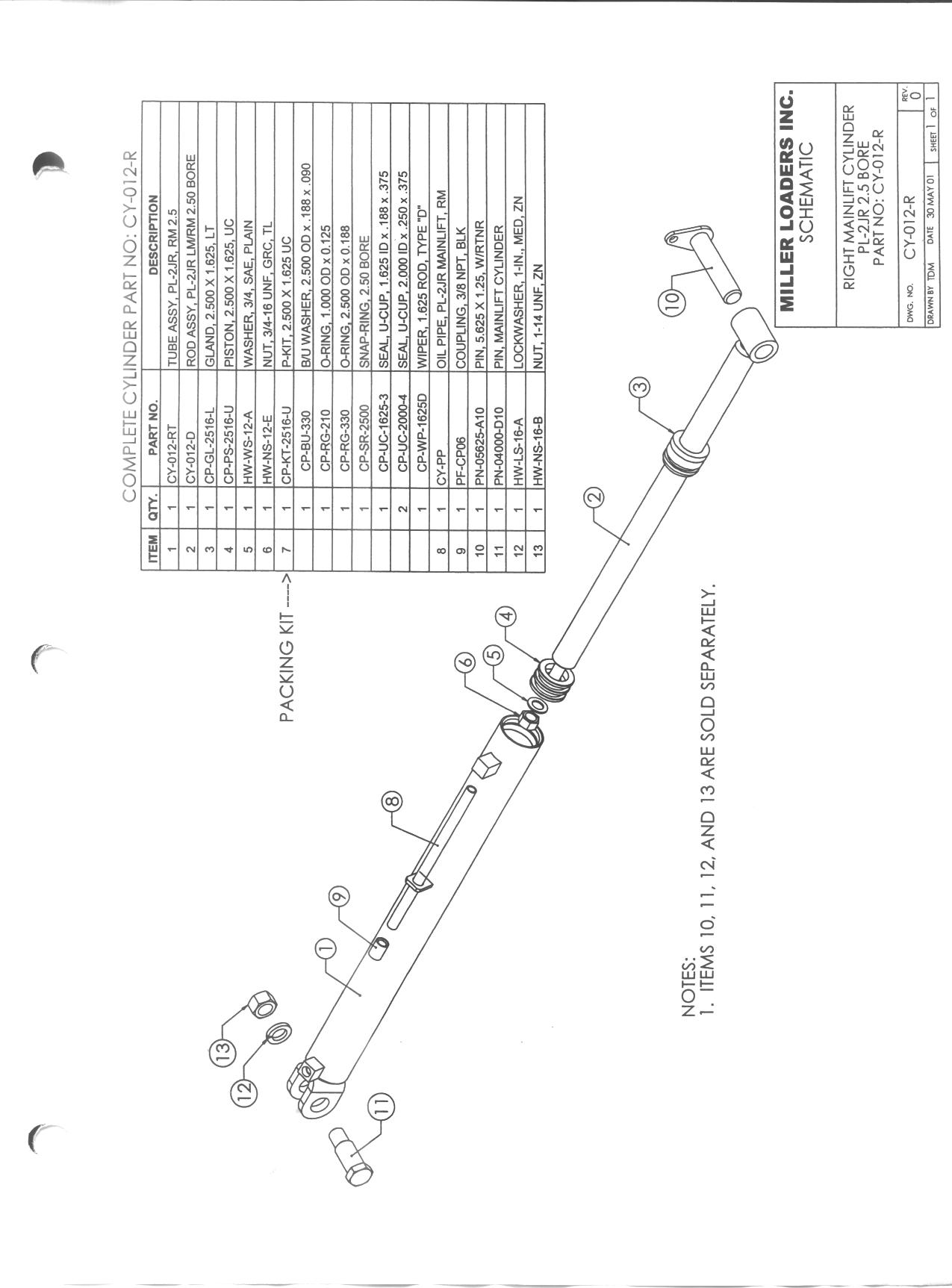

CY-012-R

CP-KT-2516-U



Lift Cylinder, 3.00 Bore x 1.75

(90 degree Butt End Ports – Newer)

3/8” Pipe

CY-047-L

CY-047-R

CP-KT-3017-U



Lift Cylinder, 2.50 Bore x 1.625

(90 degree Butt End Ports – Newer)

3/8” Pipe

CY-048-L_

CY-048-R

CP-KT-2516-U

PL-2

Bucket Cylinder, 3.00 Bore x 1.75

3/8” Pipe

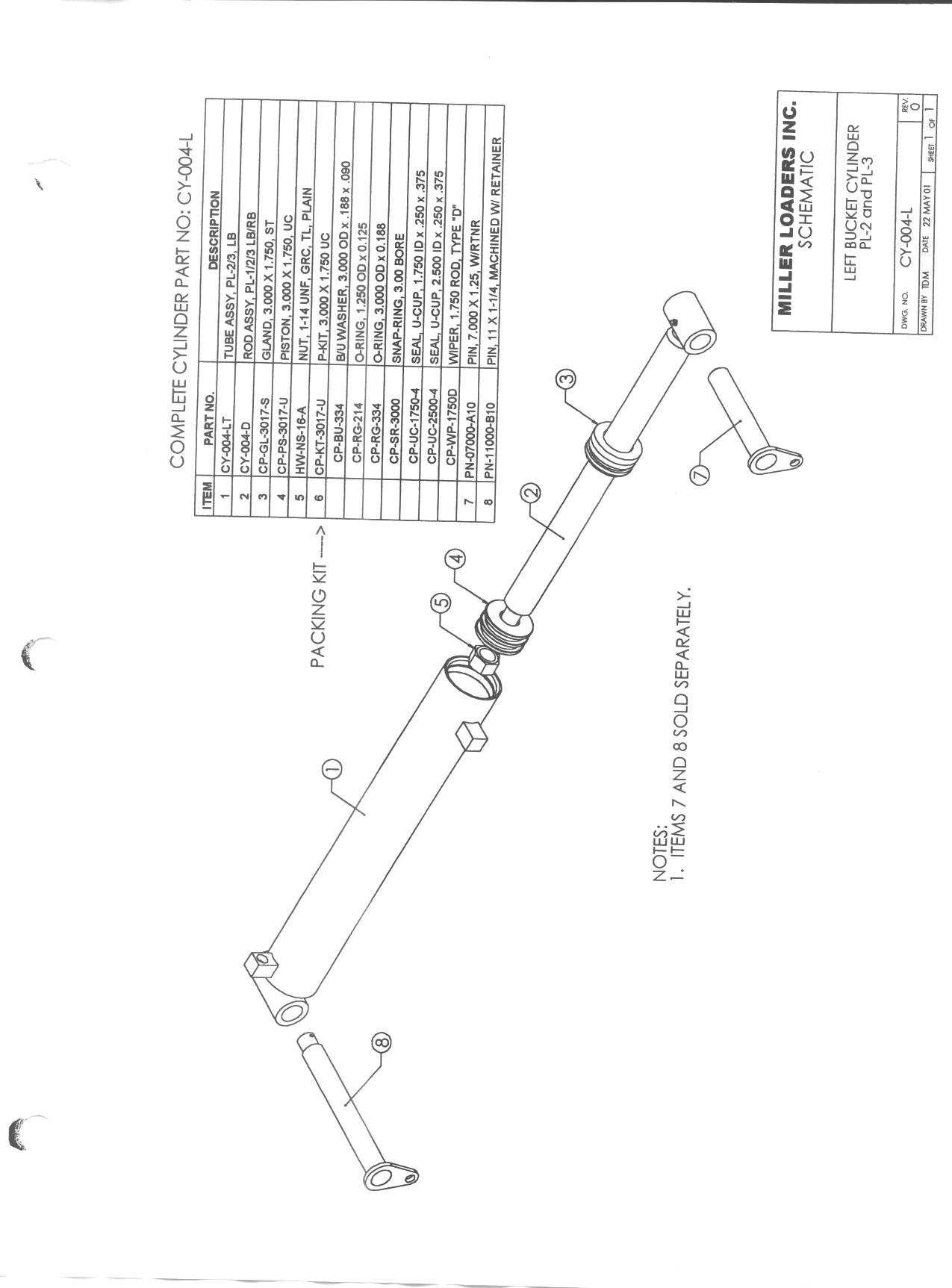

CY-004-L

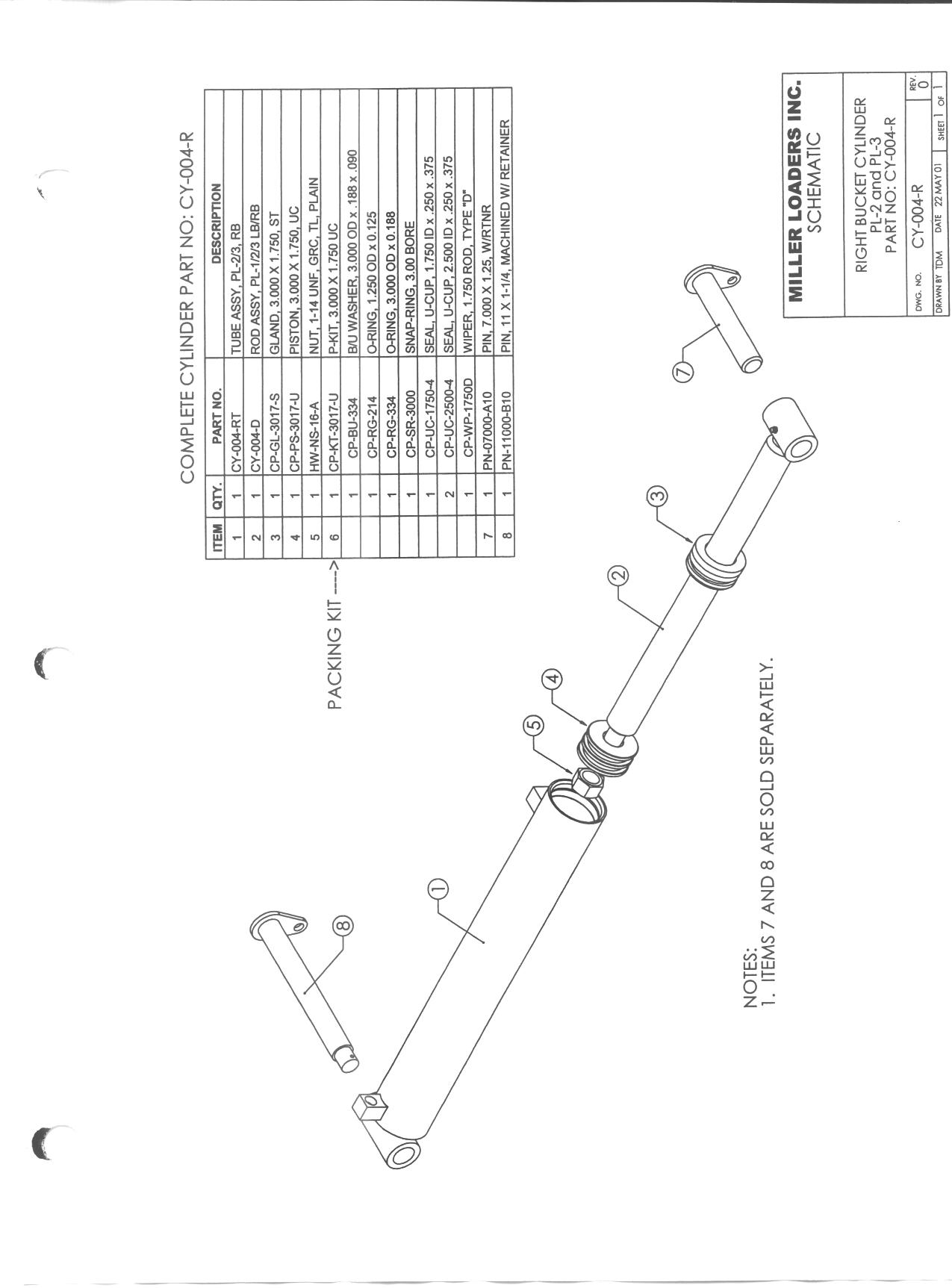

CY-004-R

CP-KT-3017-U



Bucket Cylinder, 3.00 Bore x 1.75

JIC

CY-004-LJ

CY-004-RJ

CP-KT-3017-U

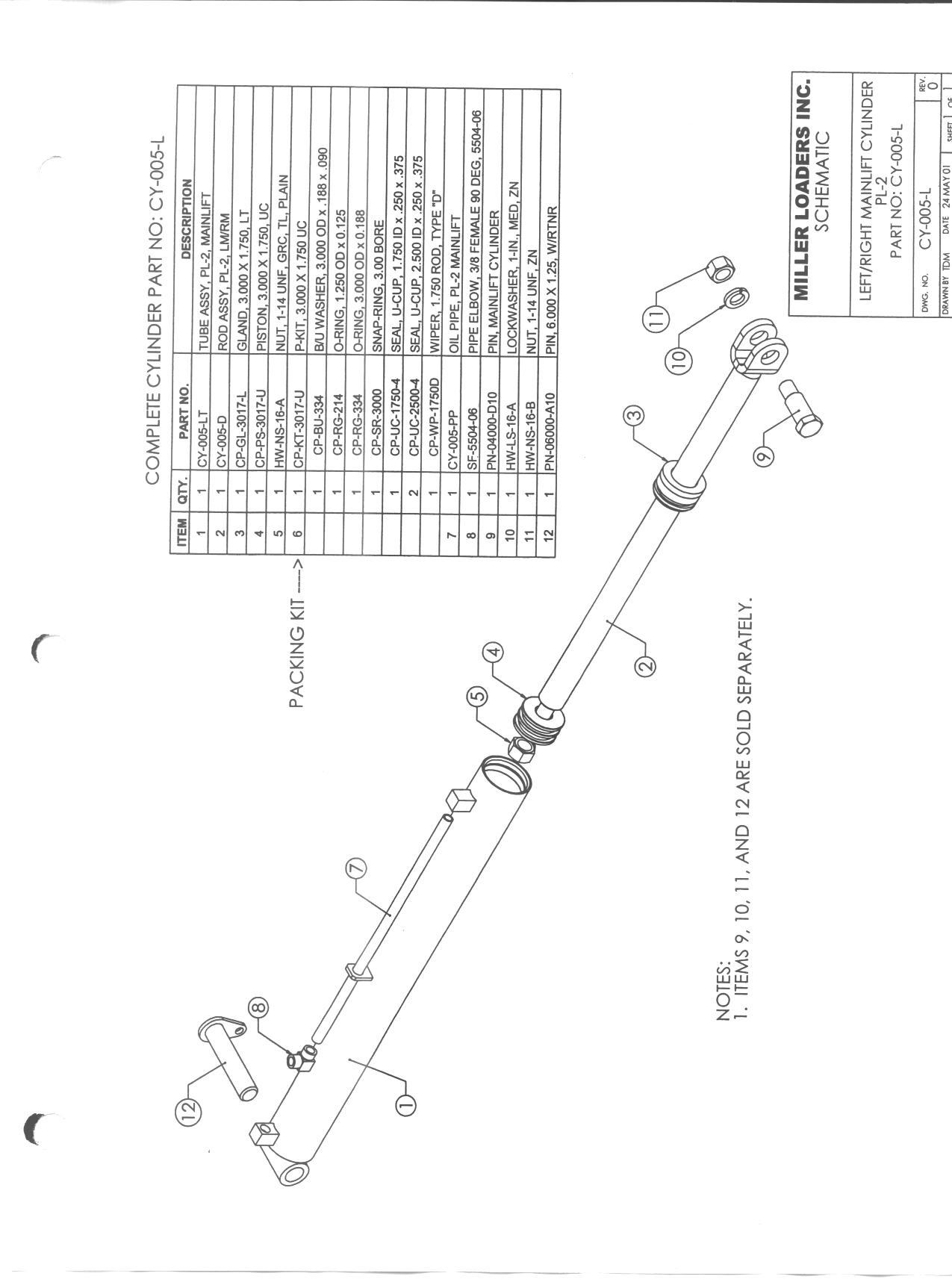

Lift Cylinder, 3.00 Bore x 1.75

3/8” Pipe

CY-005-L

CY-005-L

CP-KT-3017-U



Lift Cylinder, 2.50 Bore x 1.625

3/8” Pipe

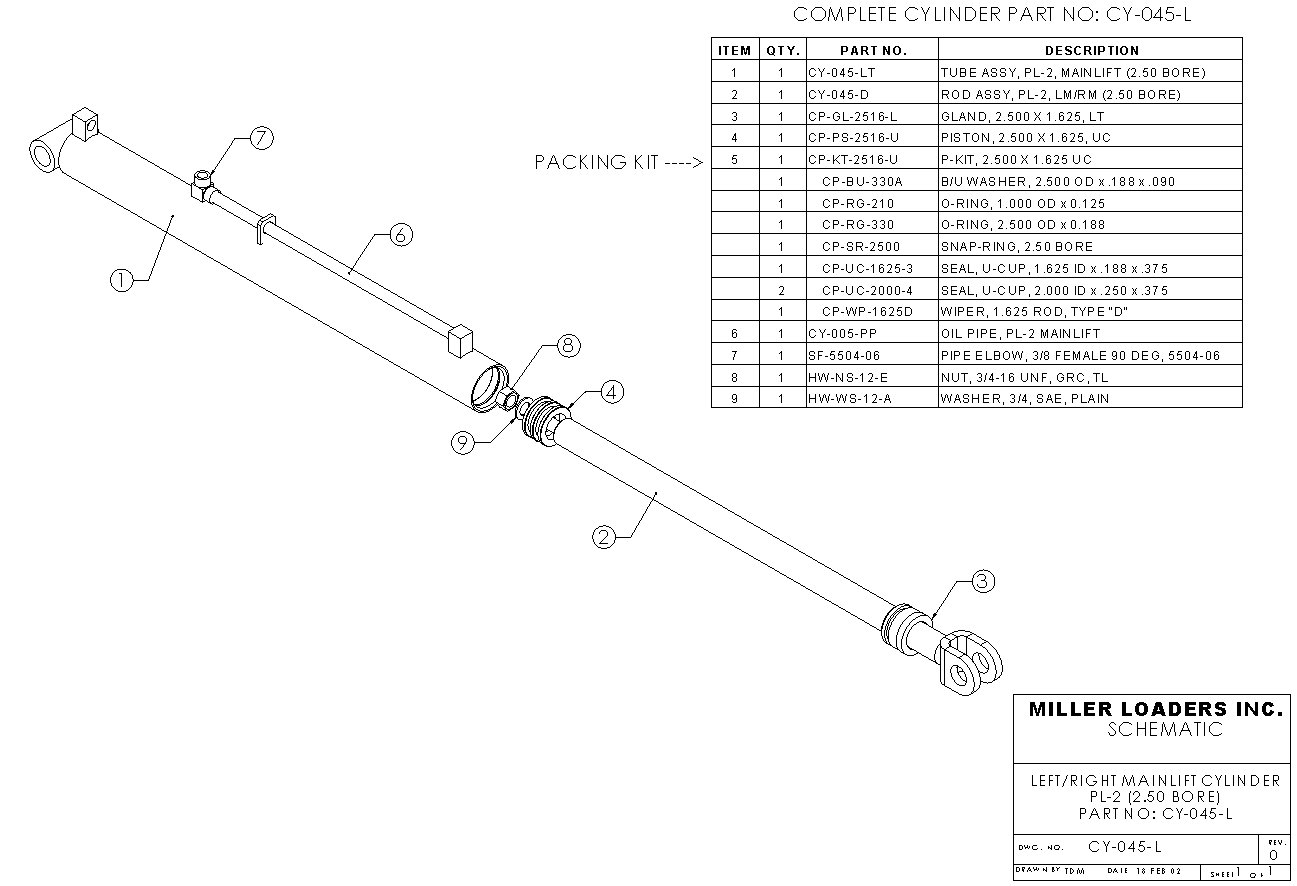

CY-045-L

CY-045-L

CP-KT-2516-U

PL-2X

Bucket Cylinder, 3.00 Bore x 1.75

3/8” Pipe

CY-004-L

CY-004-R

CP-KT-3017-U



Bucket Cylinder, 3.00 Bore x 1.75

JIC

CY-004-LJ

CY-004-RJ

CP-KT-3017-U



Lift Cylinder, 3.00 Bore x 1.75

3/8” Pipe

CY-039-L

CY-039-R

CP-KT-3017-U



Lift Cylinder, 3.00 Bore x 1.75

JIC

CY-039-LJ

CY-039-RJ

CP-KT-3017-U

PL-3

Bucket Cylinder, 3.00 Bore x 1.75

3/8” Pipe

CY-004-L

CY-004-R

CP-KT-3017-U



Bucket Cylinder, 3.00 Bore x 1.75

JIC

CY-004-LJ

CY-004-RJ

CP-KT-3017-U



Lift Cylinder, 3.25 Bore x 2.00

3/8” Pipe

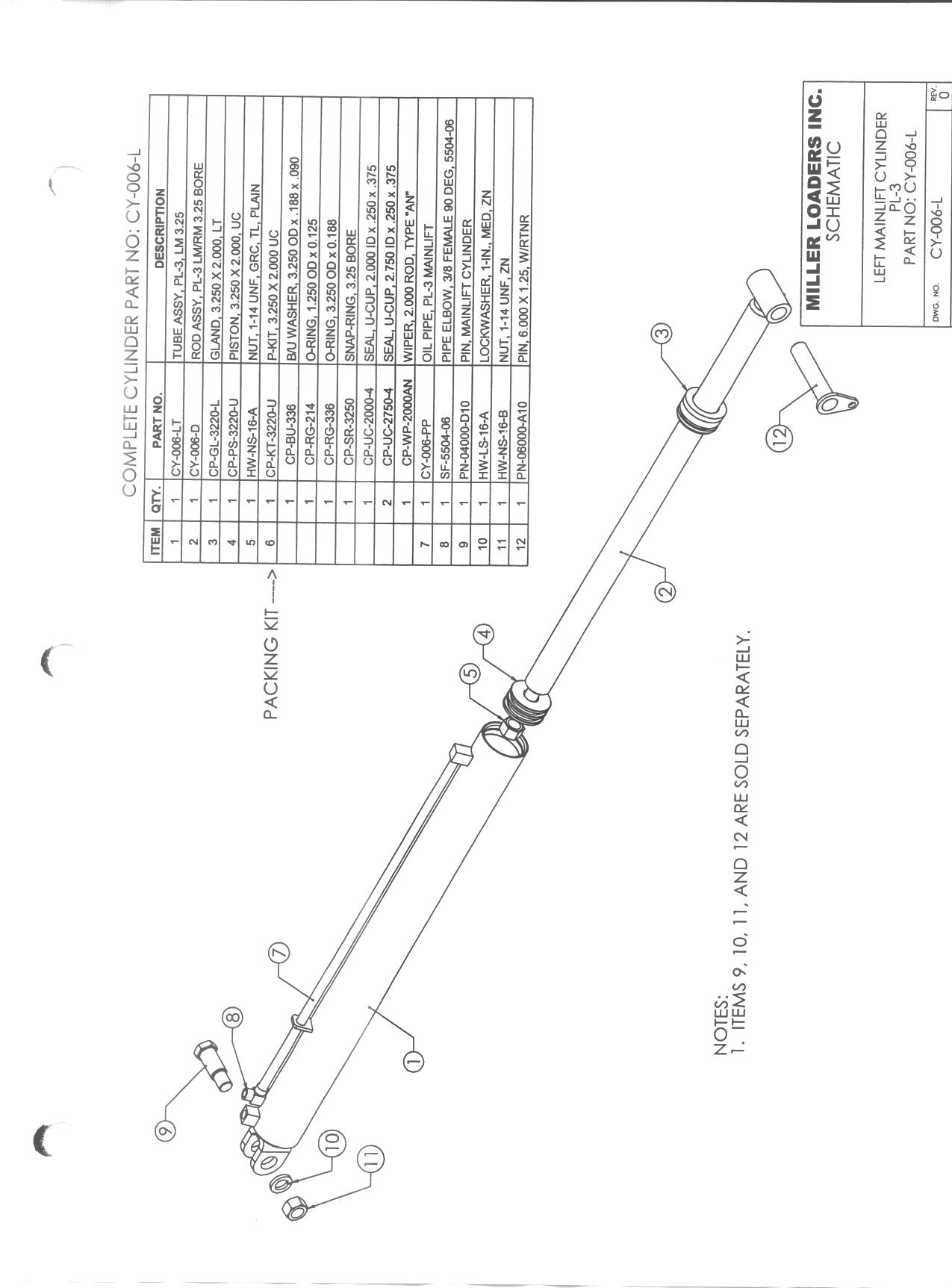

CY-006-L

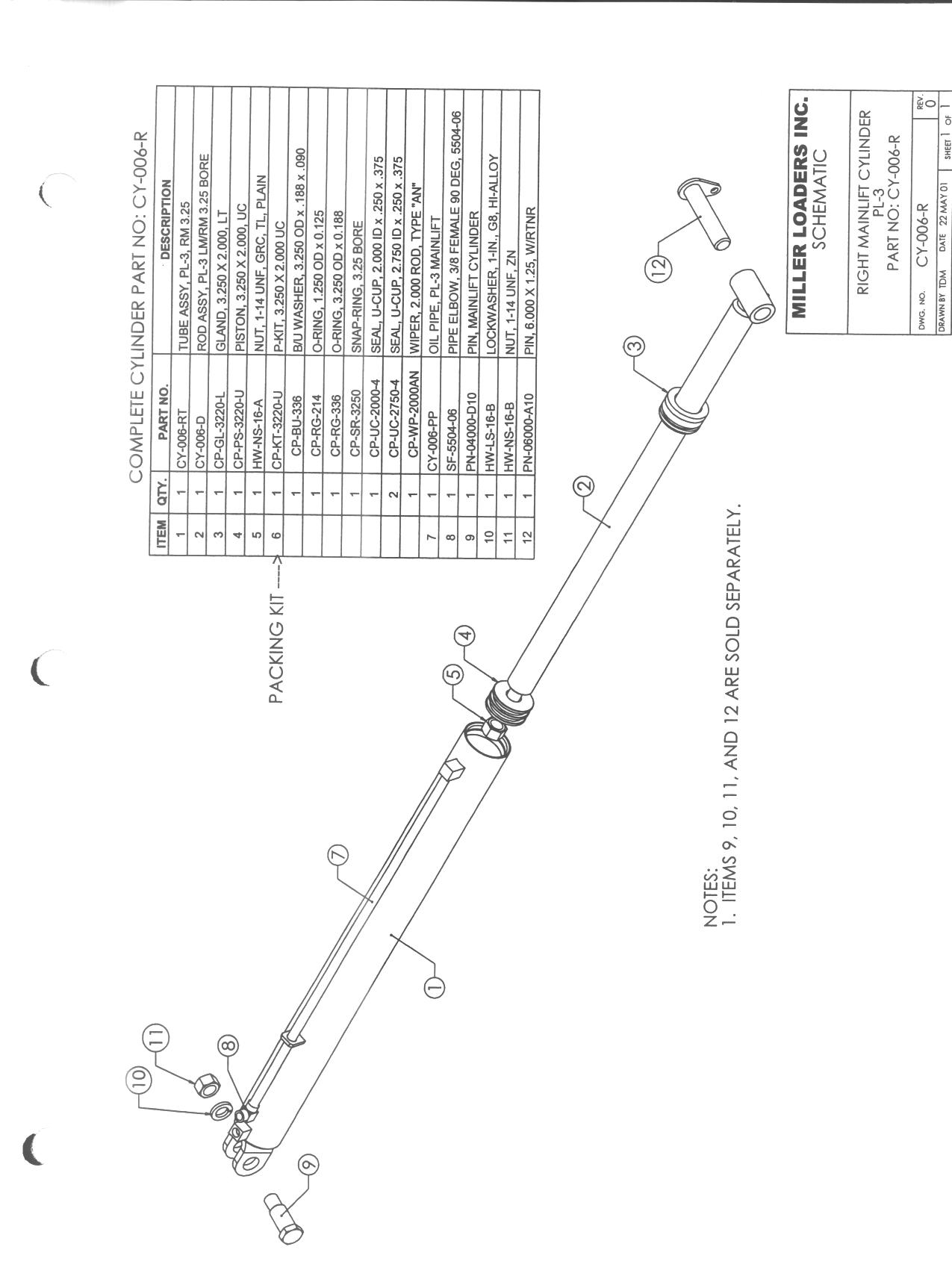

CY-006-R

CP-KT-3220-U



Lift Cylinder, 3.00 Bore x 1.75

3/8” Pipe

CY-007-L_

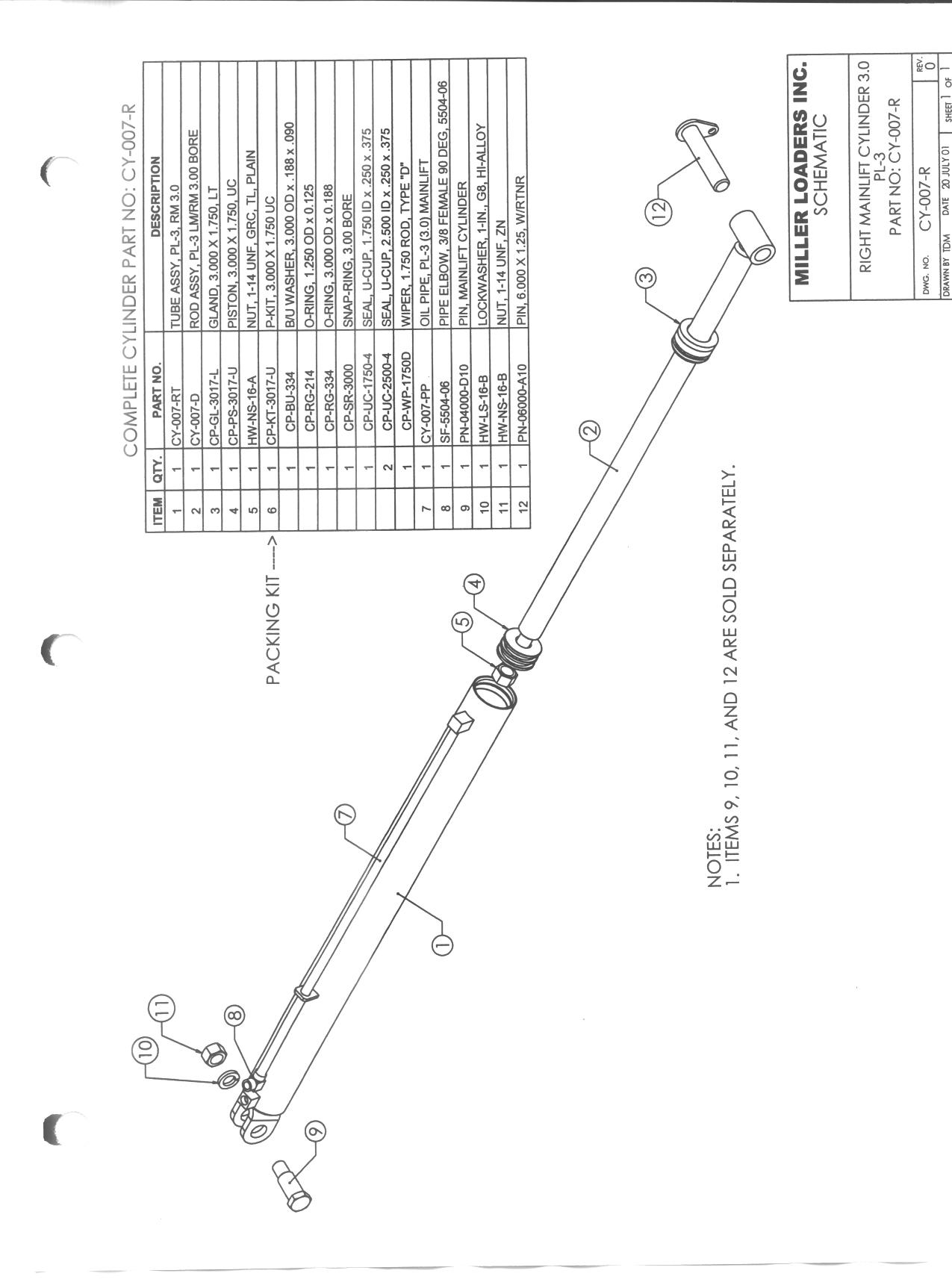

CY-007-R

CP-KT-3017-U

PL4

Bucket Cylinder, 3.25 Bore x 2.00

3/8” Pipe

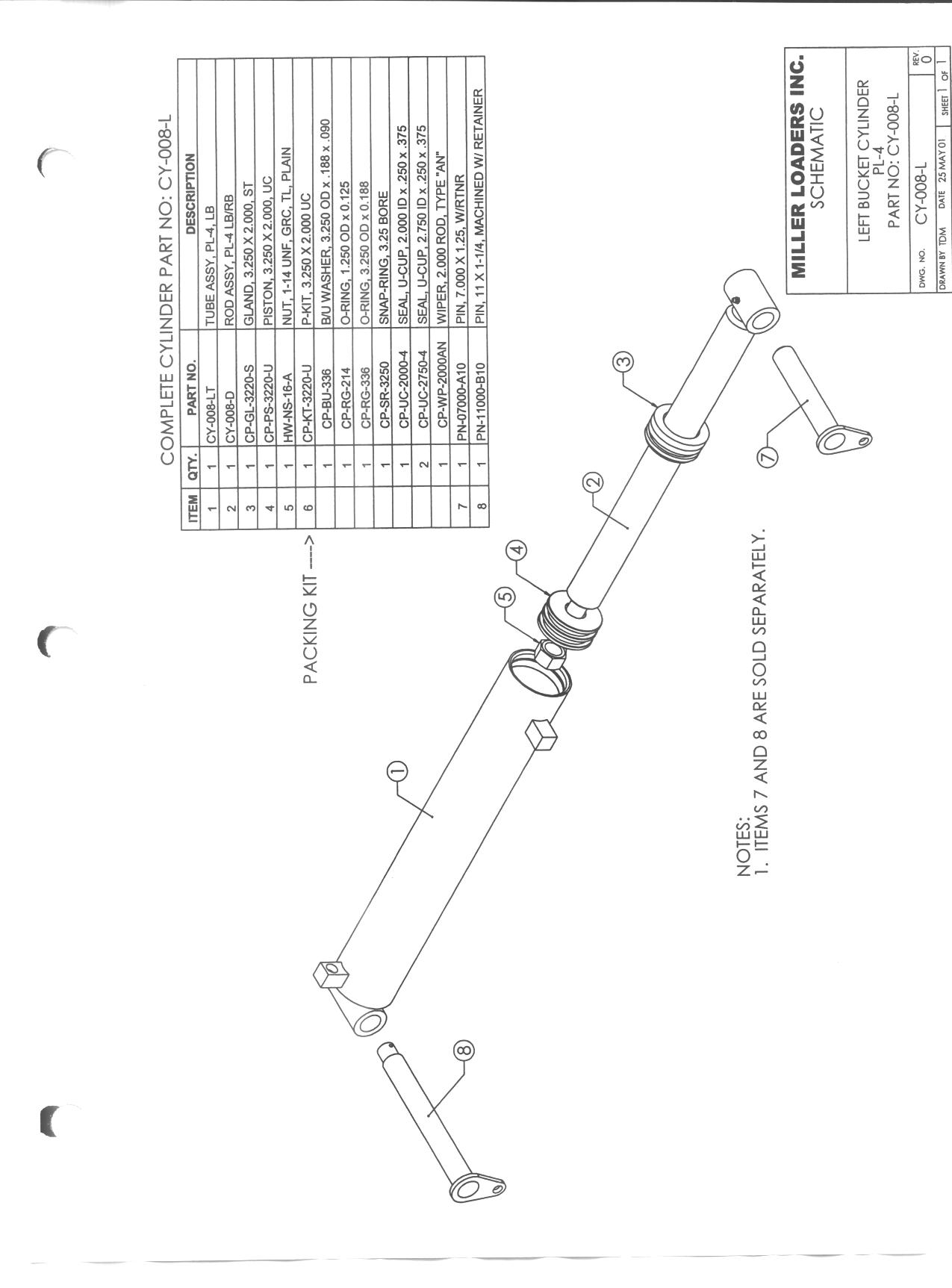

CY-008-L

CY-008-R

CP-KT-3220-U



Lift Cylinder, 3.25 Bore x 2.00

3/8” Pipe

CY-009-L

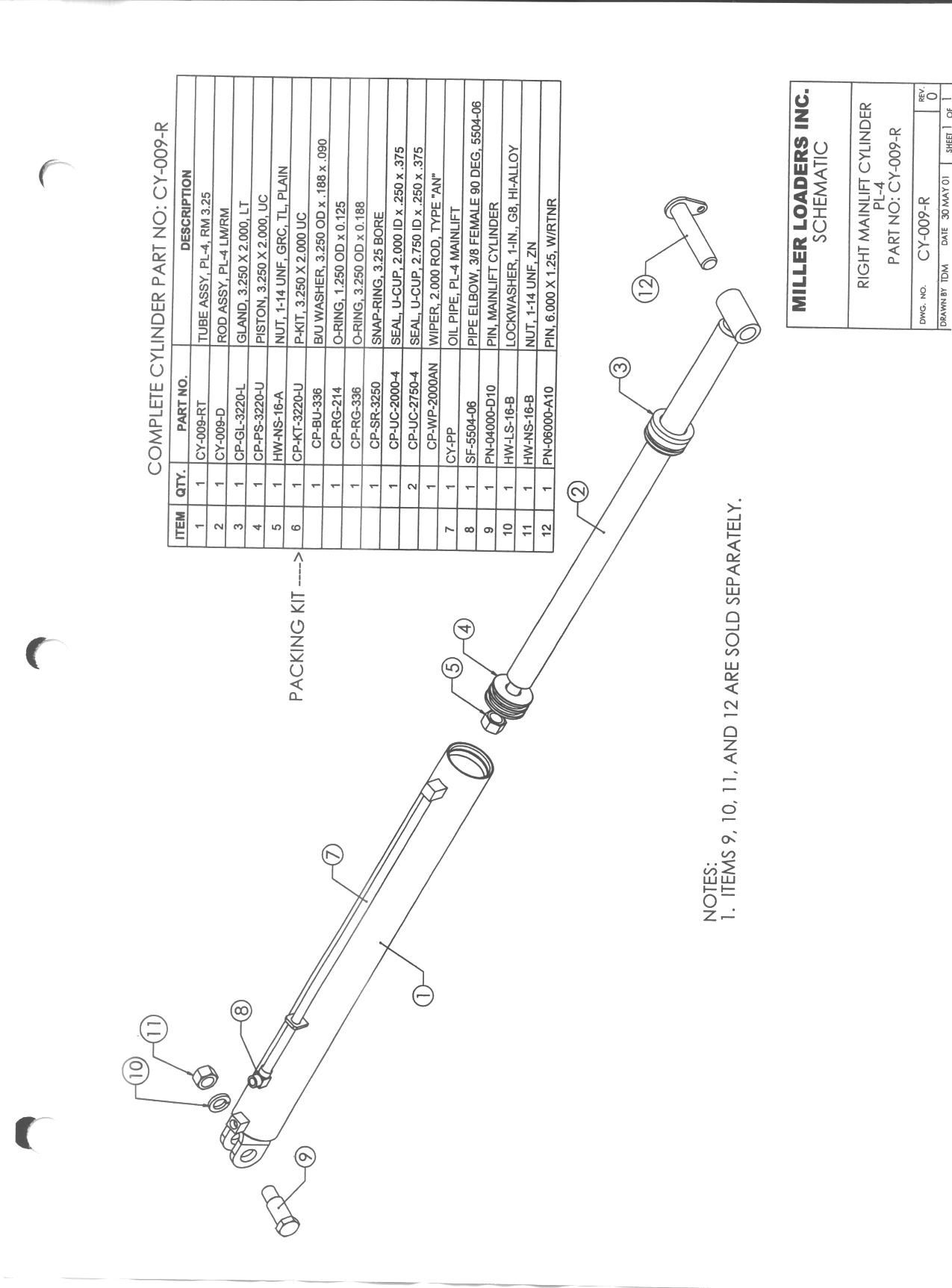

CY-009-R

CP-KT-3220-U

M10

Bucket Cylinder, 2.00 Bore x 1.375

3/8” Pipe

CY-041-L

CY-041-R

CP-KT-2013-U



Lift Cylinder, 2.00 Bore x 1.375

3/8” Pipe

CY-040-L

CY-040-R

CP-KT-2013-U

R12

Bucket Cylinder, 2.50 Bore

JIC

CY-001-LJ

CY-001-RJ

CP-KT-2516-U

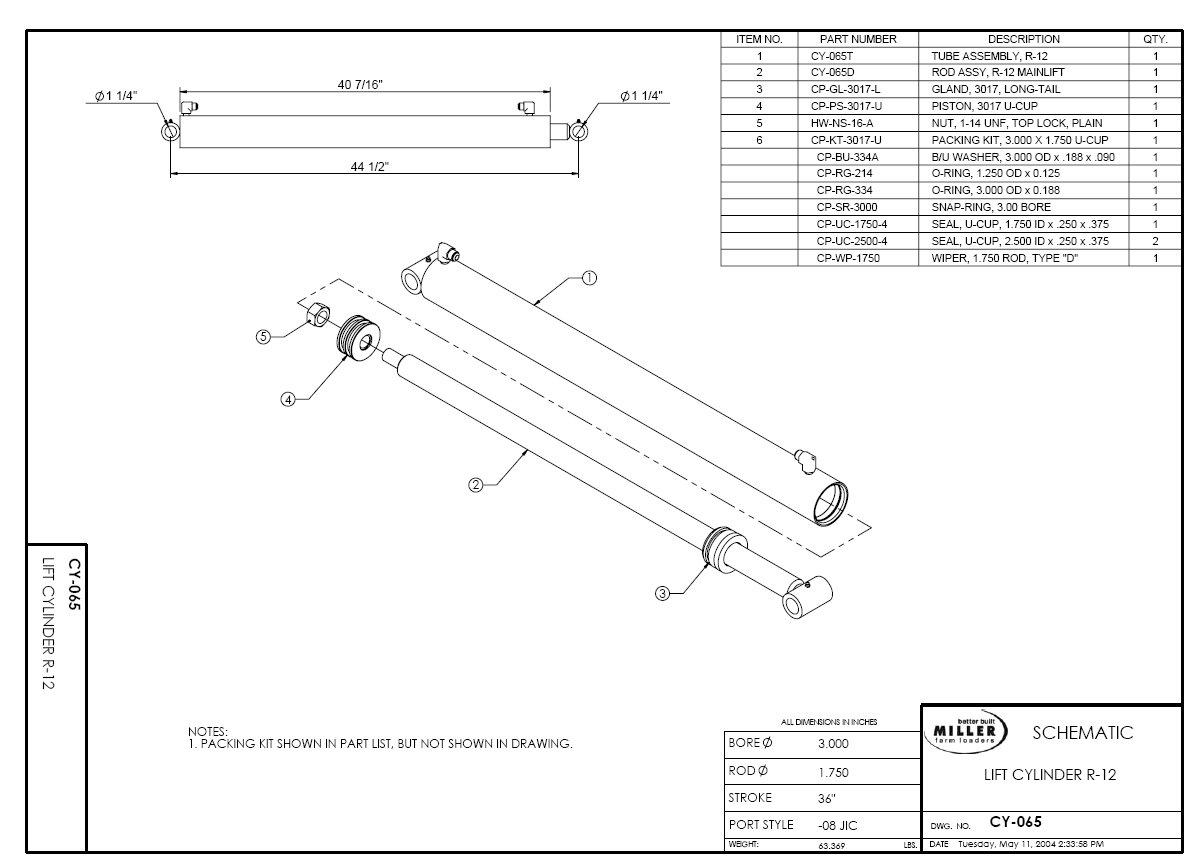

Lift Cylinder, 3.00 Bore

JIC

CY-065

CY-065

CP-KT-3017-U

Model Year(s)

Serial Number Range

1999

99017—9912N

2000-2003

00011-03024

Model Year(s)

Serial Number Range

2003-Current

99017—9912N

Model Year(s)

Serial Number Range

1995-1998

95073-98112*

Model Year(s)

Serial Number Range

1998-2004

98124-0410D

Model Year(s)

Serial Number Range

2001-2003

0108B-0305i

Model Year(s)

Serial Number Range

2003-2004

03066-0411G
